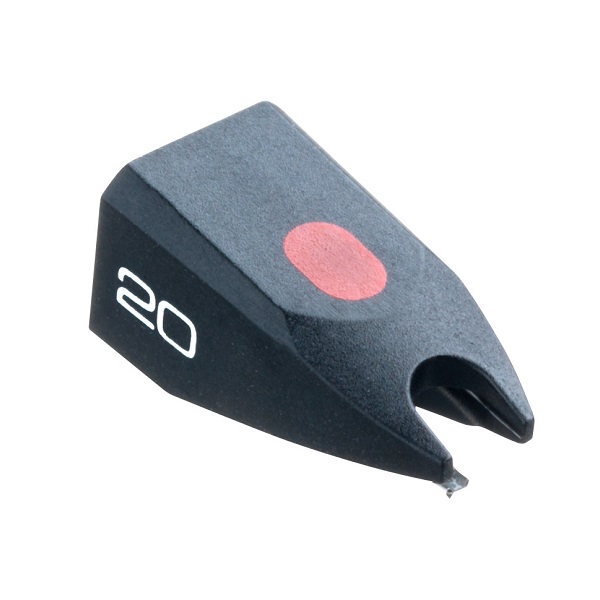

Description The Ortofon Optimum Match (OM) cartridges match most tonearms perfectly. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at anyone of these cartridges will reveal Ortofon’s answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate. If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g. An OM cartridge from Ortofon makes it possible to upgrade the performance of an entire music system very easily by upgrading the stylus. Technical data | —|— Frequency range | 20-27,000 Hz Frequency response | 20-20,000 Hz 2 / – 3 dB Tracking ability at 315Hz at recommended tracking force | 80 µm Compliance, dynamic, lateral | 25 µm/mN Stylus type | Nude Elliptical Stylus tip radius | r/R 8/18 µm Equivalent stylus tip mass | 0.4 mg Tracking force range | 1.25-1.75 g (12.5-17.5 mN) Tracking force (recommended) | 1.5 g (15 mN) Tracking angle | 20° Stylus colour | Black Recommended for the following cartridges | Super OM 20, OM 20, OMP 20, OMB 20, LM 20, Concorde 20, LM 20H, TM 20U, TM 20H
