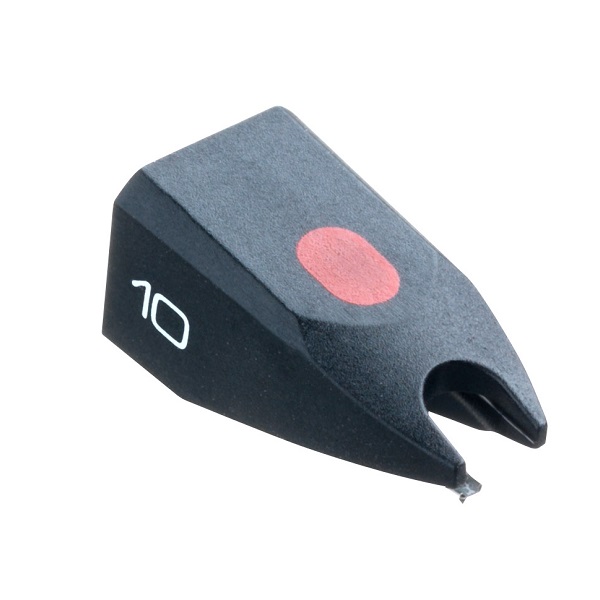

Description The Ortofon Optimum Match (OM) cartridges match most tonearms perfectly. If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs. A glance at anyone of these cartridges will reveal Ortofon’s answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate. If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5 g. An OM cartridge from Ortofon makes it possible to upgrade the performance of an entire music system very easily by upgrading the stylus. Technical data | —|— Frequency range | 20-24,000 Hz Frequency response | 20-20,000 Hz 3 / – 1 dB Tracking ability at 315Hz at recommended tracking force | 70 µm Compliance, dynamic, lateral | 25 µm/mN Stylus type | Elliptical Stylus tip radius | r/R 8/18 µm Tracking force range | 1.25-1.75 g (12.5-17.5 mN) Tracking force (recommended) | 1.5 g (15 mN) Tracking angle | 20° Stylus colour | Black Recommended for following cartridges | Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, TM 10H, LMB 12, SMB 12, LMA 12, Concorde STD, Dual ULM 65E, Dual ULM 66E
