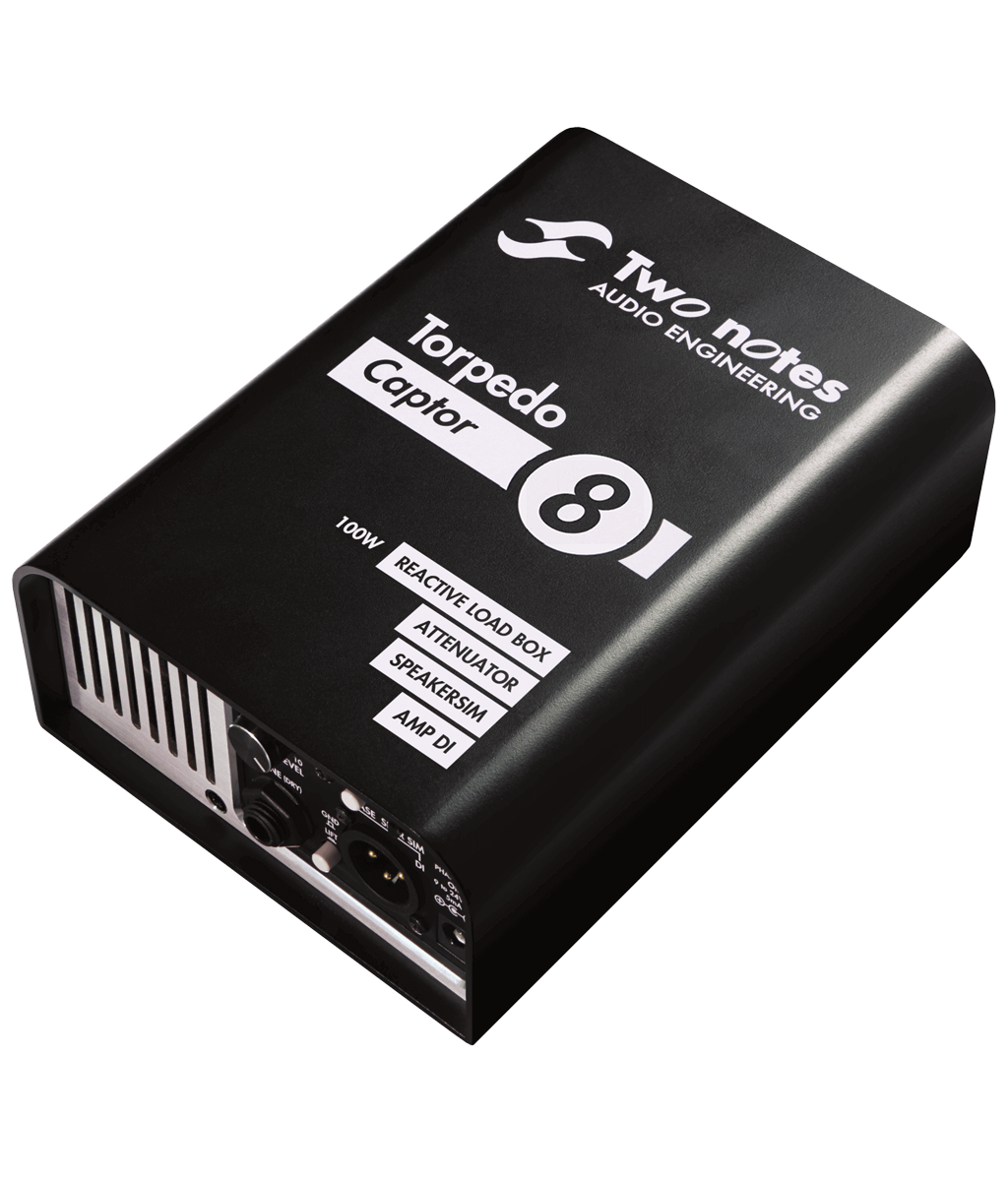

Description*This is the 8 ohm version of this load box!*From Two Notes:Compact and straightforward, the Torpedo Captor is the secret weapon in thousands of studios worldwide and an indispensable tool for stages of all sizes. Play and record your amp at home, on stage or in the studio, at the sweet spots.Includes built-in guitar and bass analog cab sims for standalone use or combine with the included Wall of Sound Plug-In and explore 16 DynIR virtual cabinets.Input / OutputSpeaker Input : 1/4″ Jack unbalanced (TS)Speaker Attenuated Output : 1/4″ Jack unbalanced (TS) Attenuation: -20dBSpeaker Thru* : 1/4″ Jack unbalanced (TS) Directly connected to Speaker Input *Loadbox disconnected when in useLine Output* : 1/4″ Jack balanced (TRS) Impedance: 1000 Ohms Phase switch Ground lift *Without speaker simulationDI Output : XLR balanced Impedance: 600 Ohms *With or without speaker simulationAnalog speaker sim : Guitar : based on Brit VintC DynIR Cabinet – Dyn57 Microphone Bass : based on Fridge DynIR Cabinet – Cnd87 MicrophoneReactive Load BoxImpedance : 4, 8 or 16 Ohms Max admissible power : 100W RMSSafety system : Temperature-controlled fan Active thermal safetyPowerInput voltage : Phantom power or 9-12V DC jack, 2.1×5.5mm, negative center.Current draw : 5mAPower input connector: DC connector, 2.1mm x 5.5mm, center negativePower is required only for the XLR DI output and analog speaker simDimensions & weightWidth x Depth x Height*: 12.6cm x 17.5cm x 6.2cm – 4.9″ x 6.7″ x 2.4″ *Including connectors and knobsWeight: 1000 g / 2.2 lbs
